The site included a mix of built structures and open landscape, requiring full coverage across both. The extensive gardens and vegetation added complexity to the data capture, as dense planting can introduce noise into point cloud data. The survey covered the full extent of the site to provide the client with a complete topographical record.

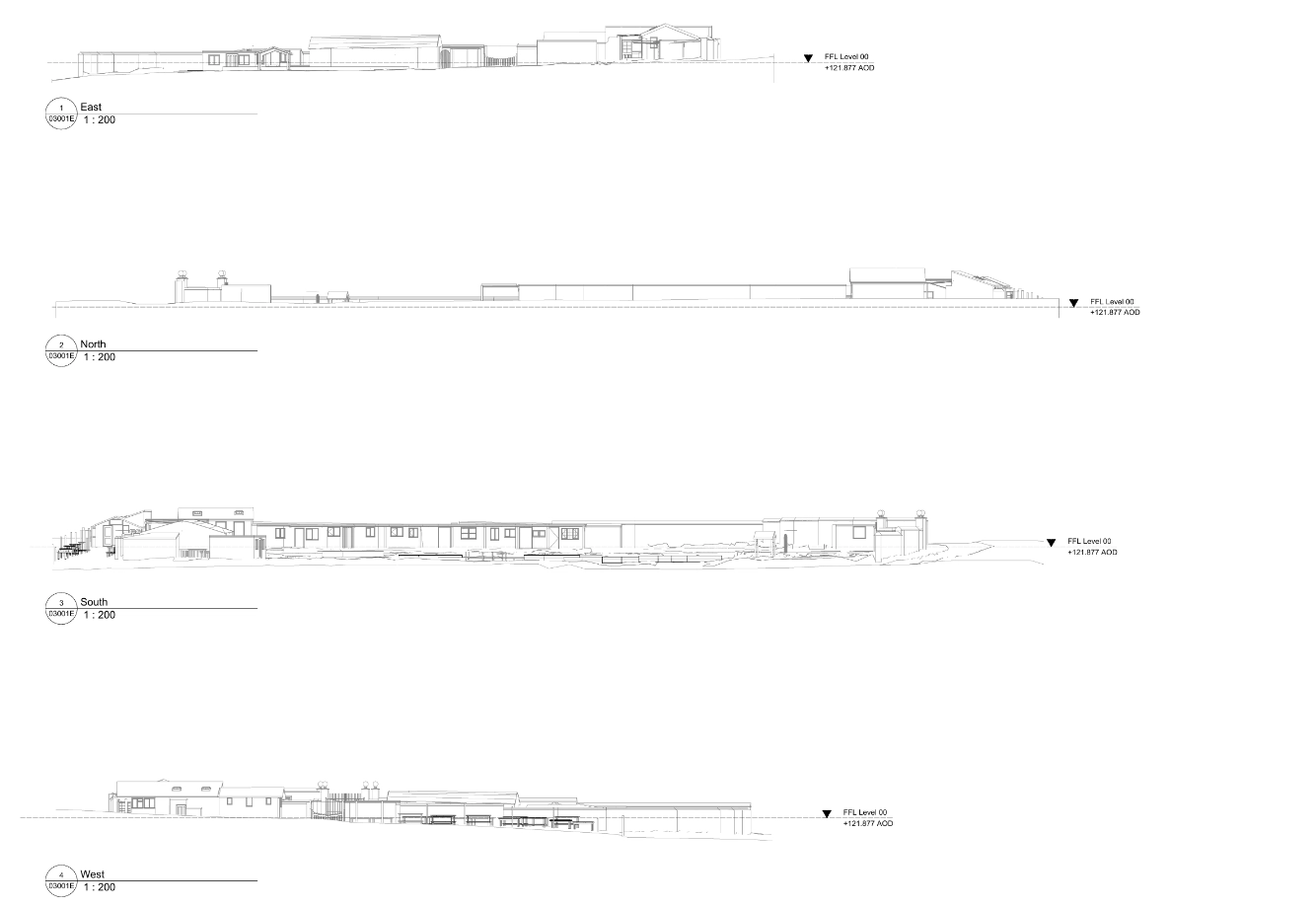

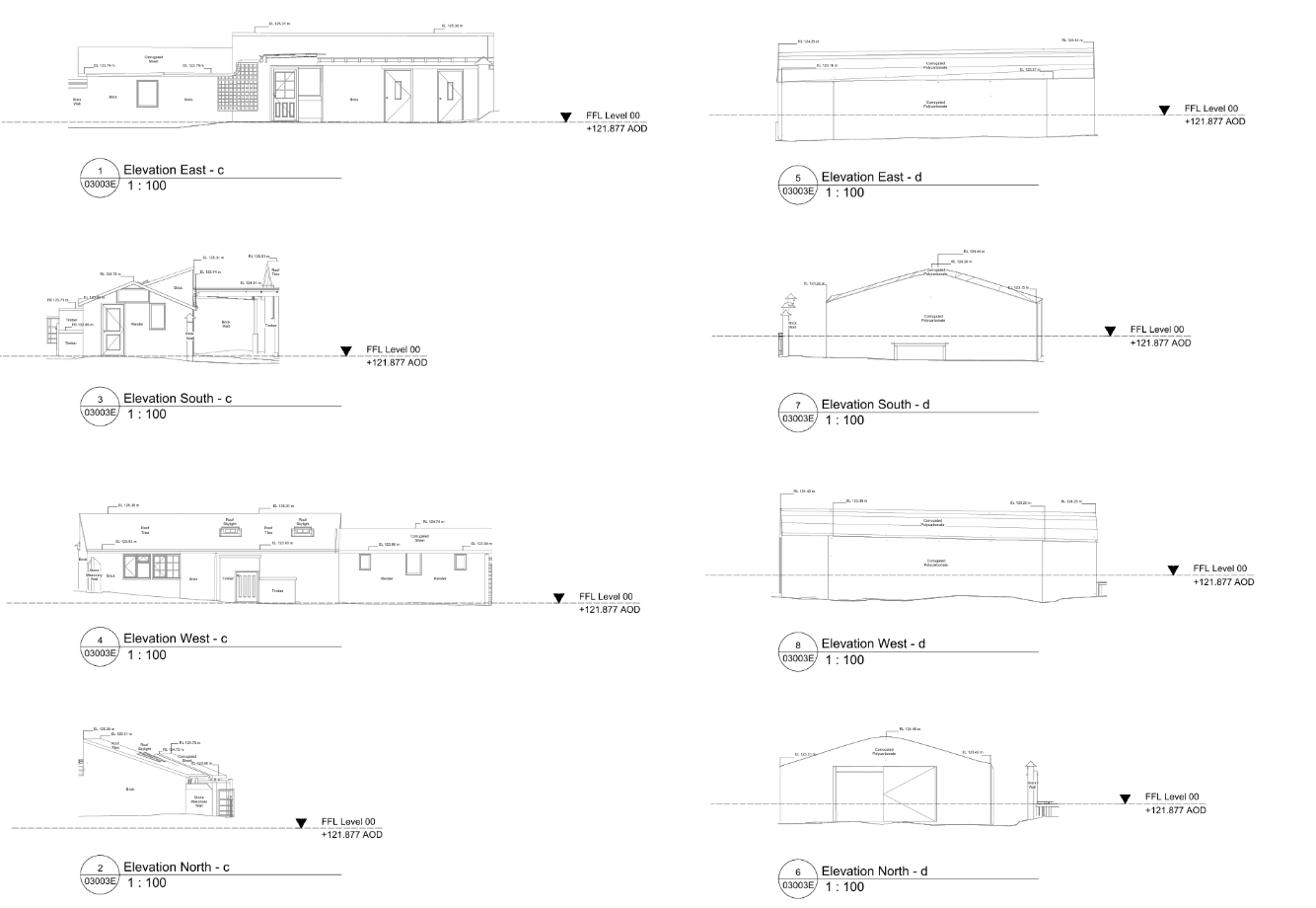

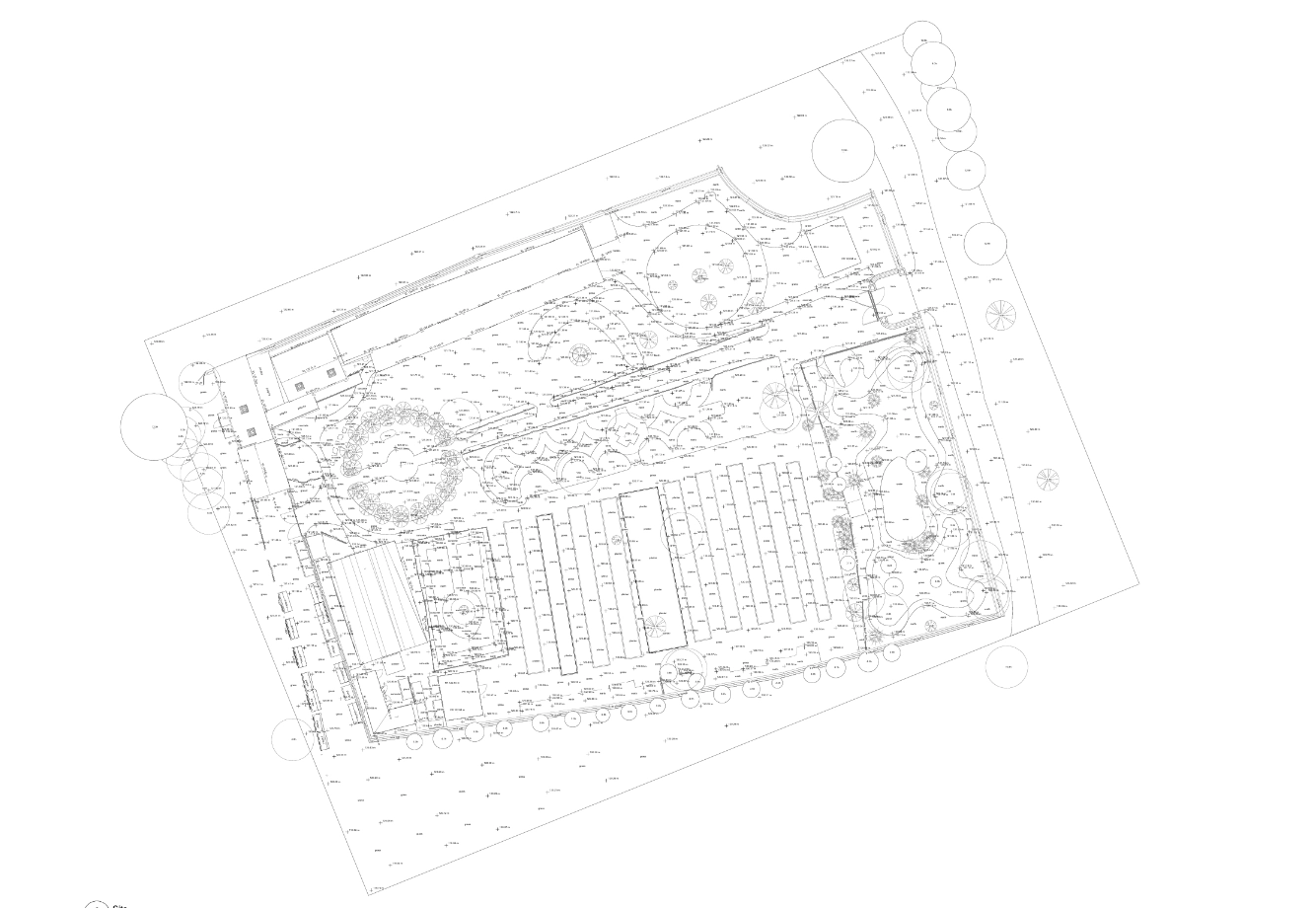

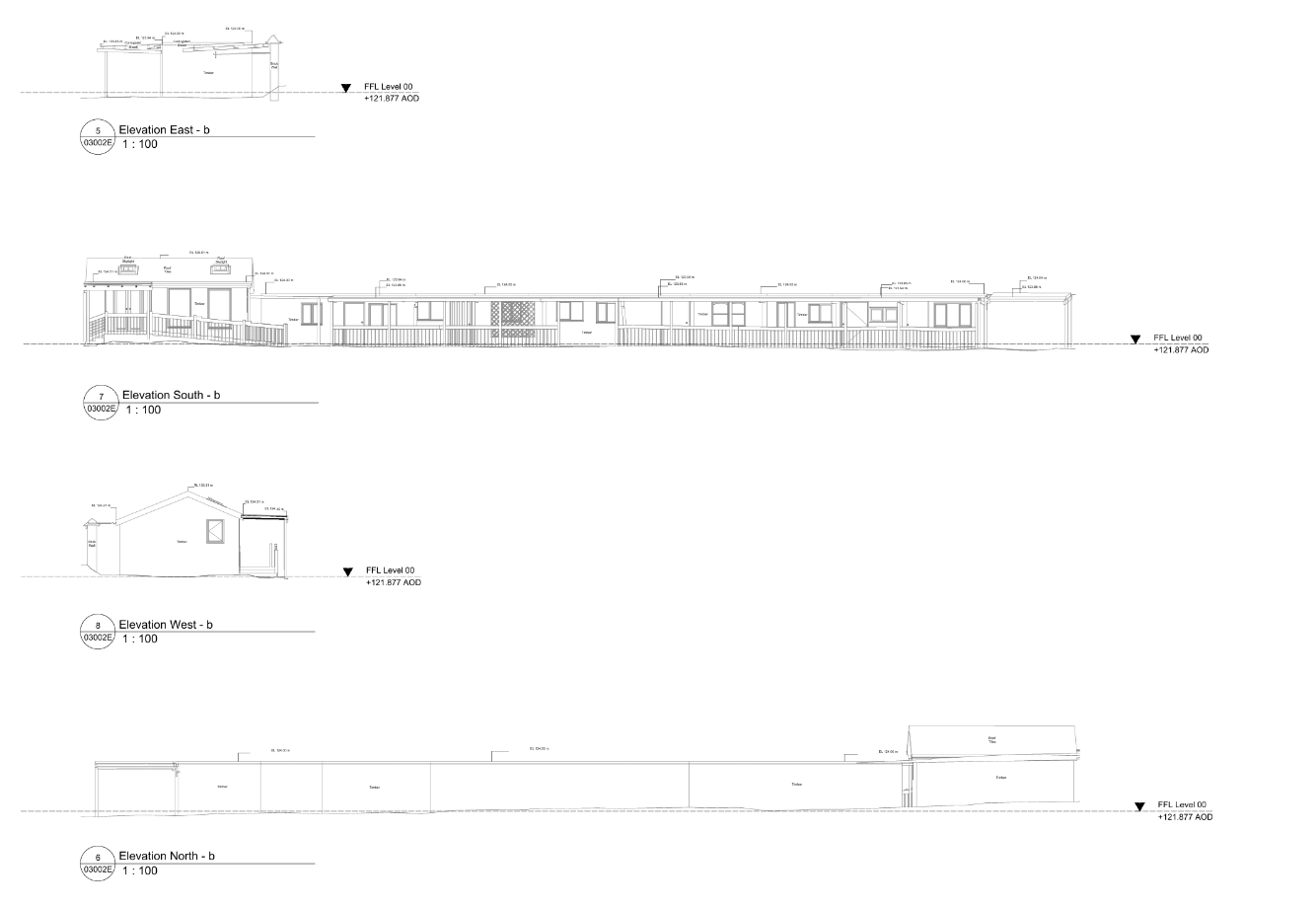

The point cloud data was processed to produce a detailed 3D topographical model. Plans and elevations were generated from the model, capturing the relationship between the five buildings and the surrounding landscape.

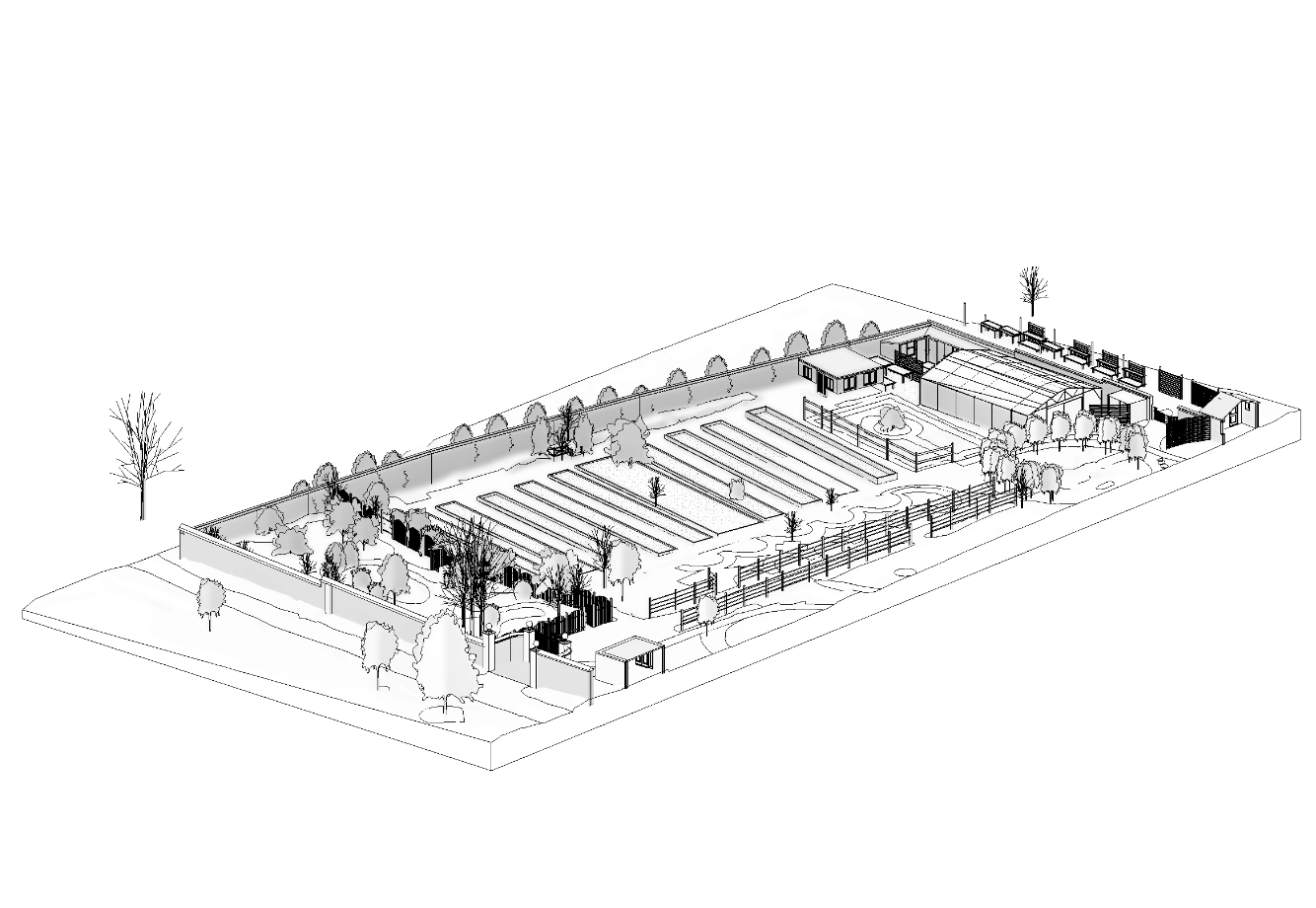

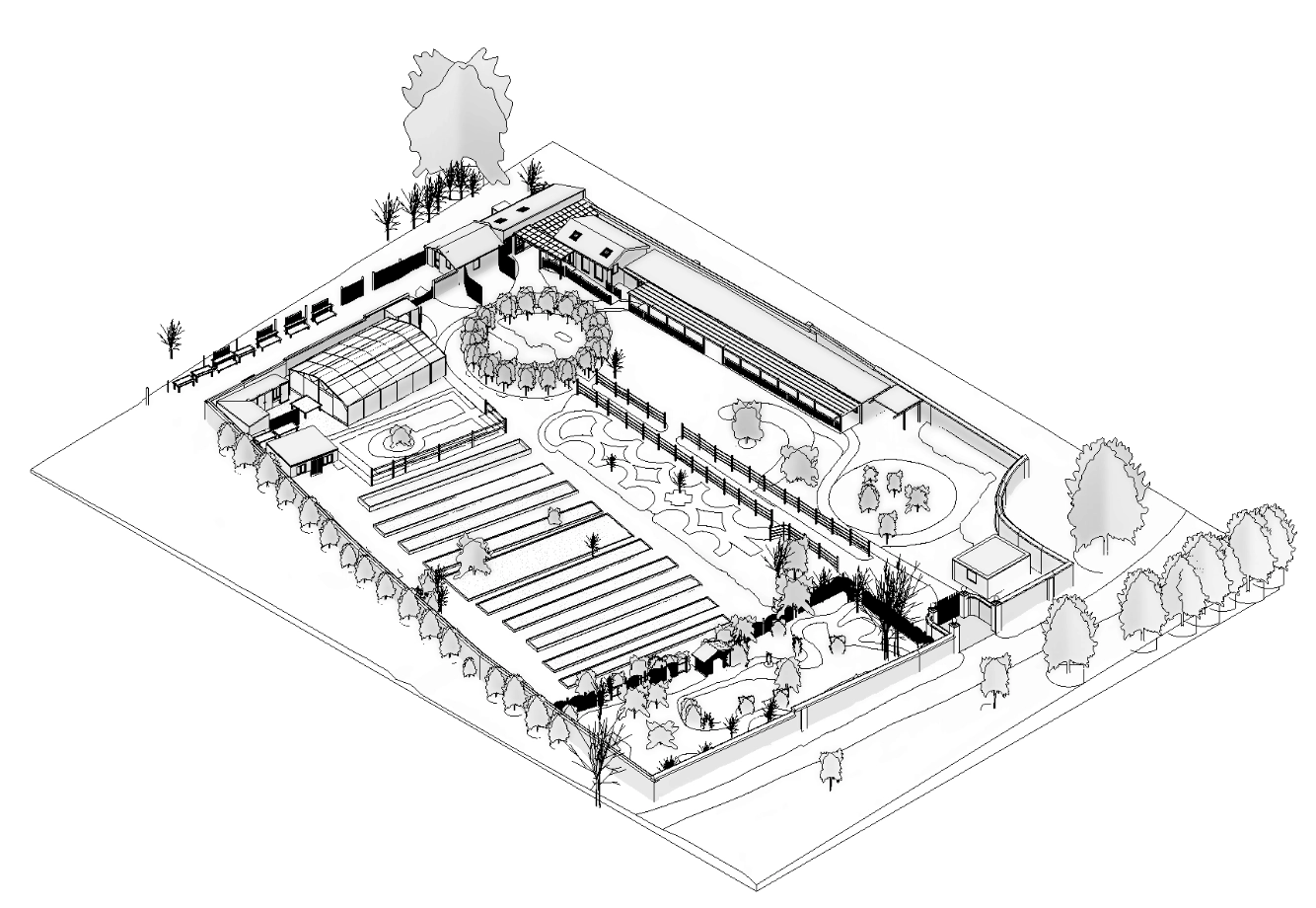

Topographical plans, elevations, and a 3D topographical Revit model of the full site.
