Measured Building Survey | Residential | Manchester

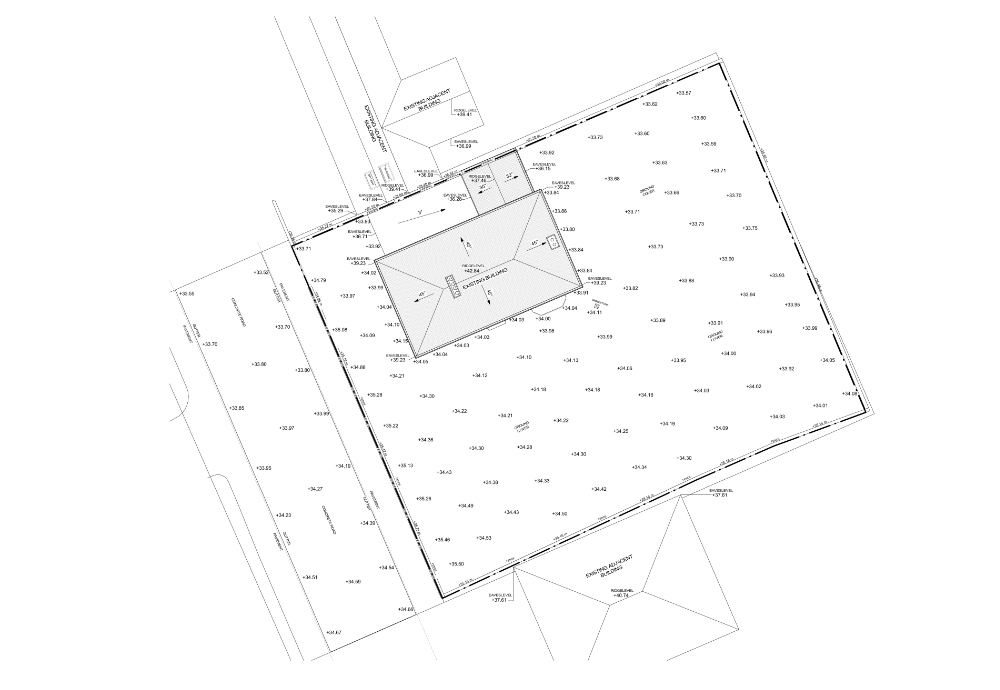

1. Topographic Survey & Modelling

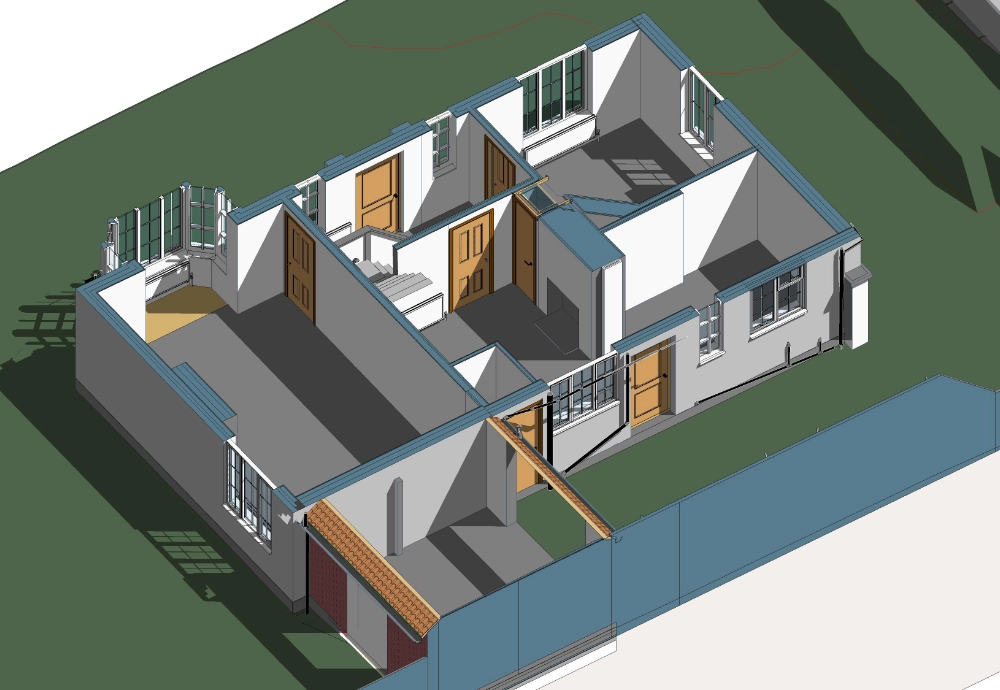

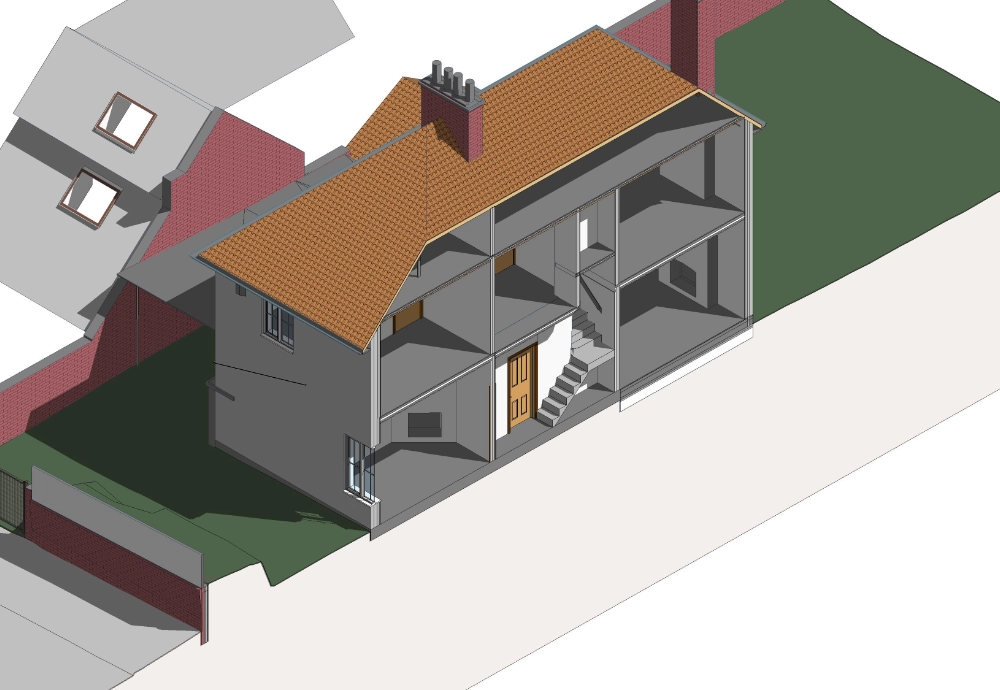

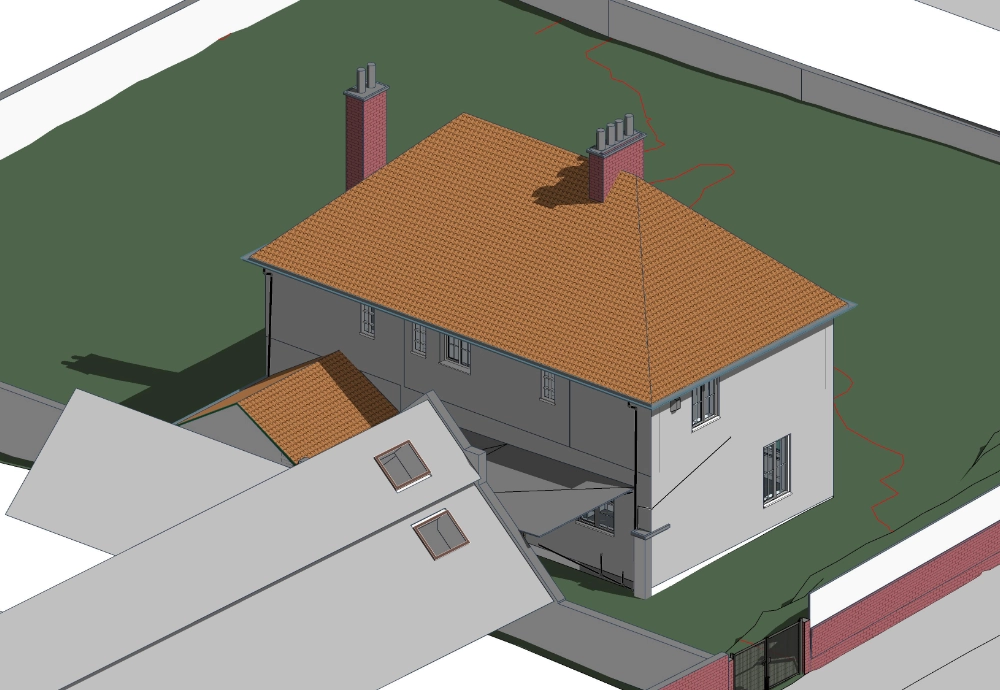

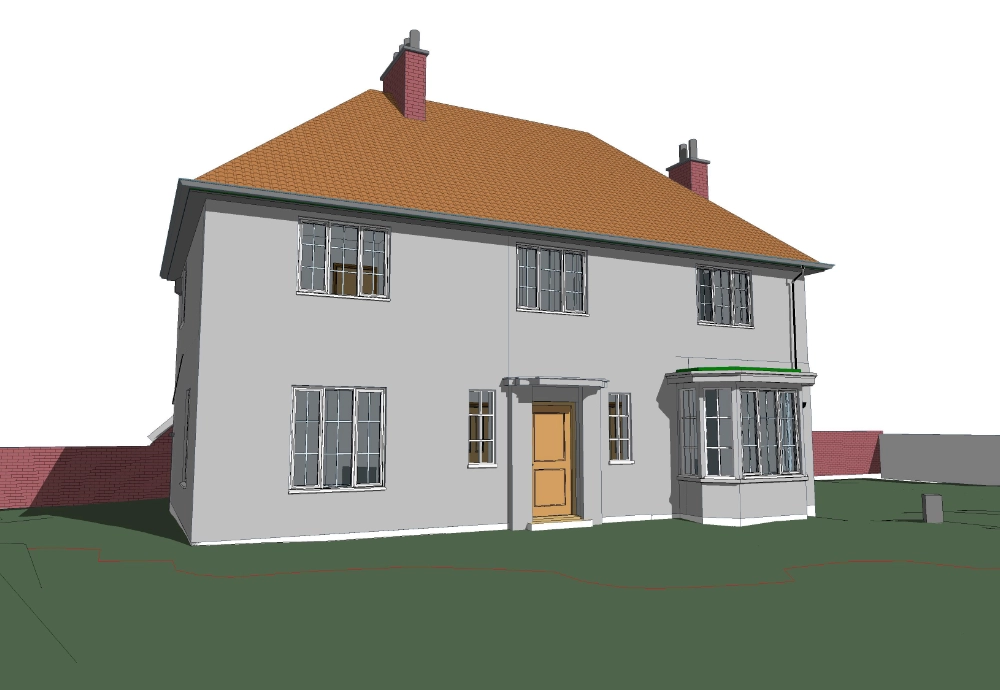

As the existing building occupies only a small portion of the lot, topography formed the foundation of the project. Following detailed analysis of the point cloud data, a strategic modelling approach was developed to meet the client’s requirements. The model incorporates roadways, sidewalks, and perimeter walls, alongside the existing building’s form and its classical architectural features.

2. Adjacent Structures

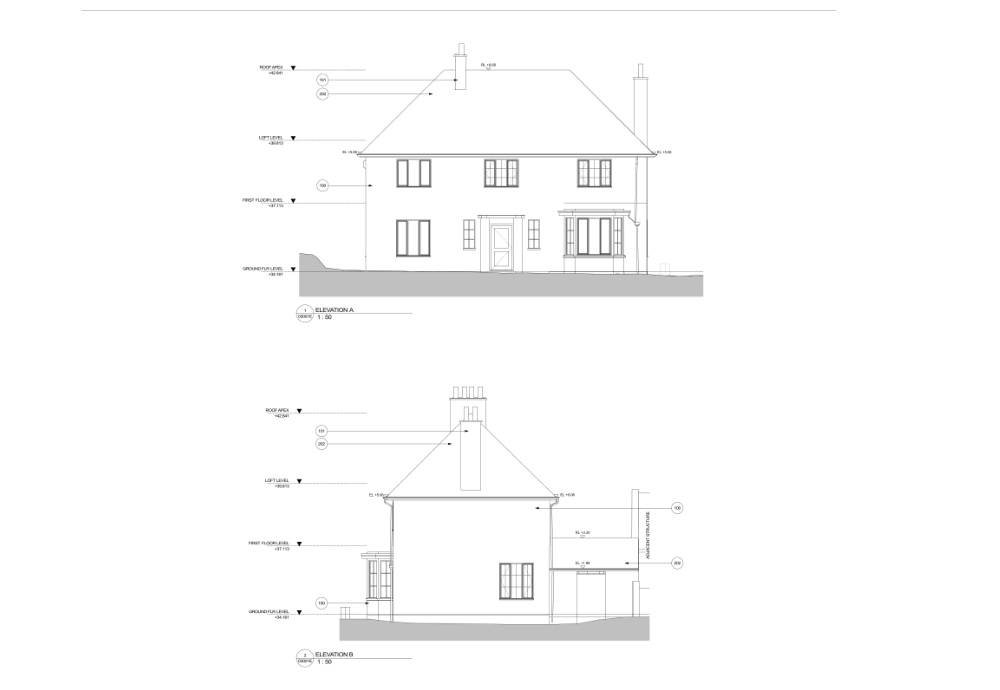

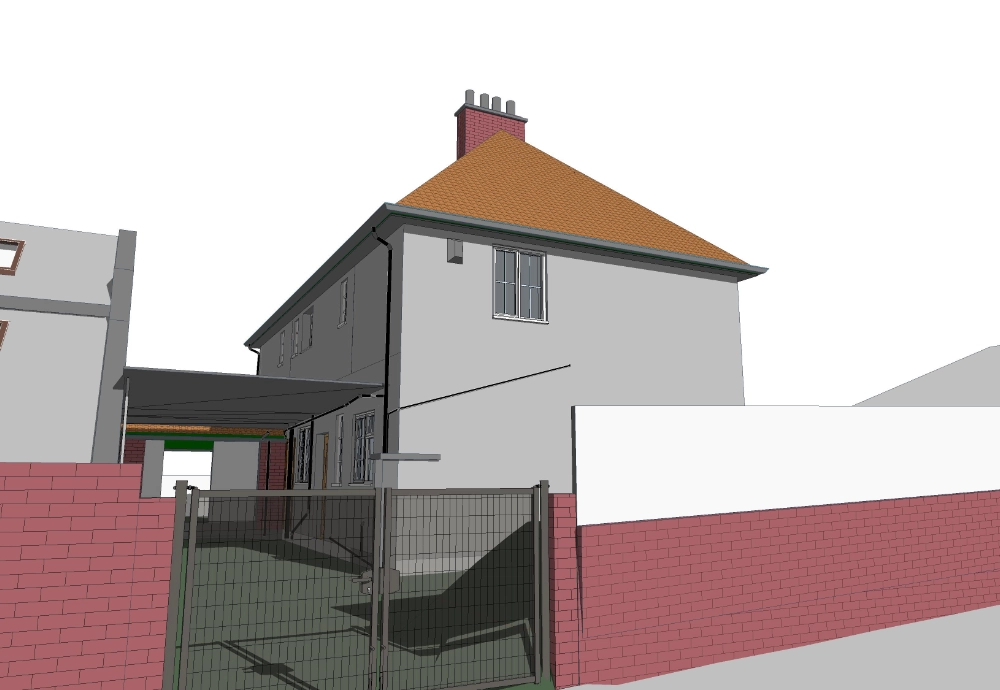

Eaves and ridge heights of the neighboring buildings were recorded and integrated into the model to support the client’s development application.

3. Point Cloud Challenges

Dense on-site vegetation introduced noise into the point cloud data. The team resolved these issues during processing to deliver an accurate topographic model without compromising data integrity.
